6 LPM Medical Oxygen Generator with Thomas Compressor At Home or Pension Agency For Lack Of Oxygen Users
Parameter
| Model | JMC6A Ni |
| Display Usage | Real-Time Monitoring Display |
| Compressor | Oil-Free |
| Average Power Consumption | 390 Watts |
| Input Voltage/Frequency | AC220 V ± 10% ,50Hz AC120 V ± 10% ,60Hz |
| Ac Power Cord Length(Approx) | 8 Feet ( 2.5m ) |
| Sound level | ≤48 dB(A) |
| Outlet Pressure | 5.5 PSI (38kpa) |
| Liter Flow | 0.5 To 6 Liters Per Minute |
| Oxygen Concentration (at 5 lpm) | 93%±3% At 6L/Min. |
| OPI (Oxygen Percentage indicator) Alarm L | Low Oxygen 82% （Yellow）,Very Low Oxygen 73%（Red） |
| Operating Altitude /Humidity | 0 To 6,000 (0 To 1,828 m),Up To 95% Relative Humidity |
| Operating Temperature | 41 Degree Fahrenheit To 104 Degree Fahrenheit (5 Degree Celsius To 40 Degree Celsius) |
| Required Maintenance（Filters） |
Machine Inlet Window Filter Clean Every 2 Weeks Compressor Intake Filter Change Every 6 Months |
| Dimensions(Machine) | 13*10.2*21.2 inch (33*26*54cm) |
| Dimensions(Carton) | 16.5*13.8*25.6 inch (42*35*65cm) |
| Weight (Approx) | N.W: 35lbs （16kg） G.W: 40lbs (18.5kg) |
| Alarms | System Malfunction, No Power, Impeded Oxygen Flow, Overload ,Overheat, Abnormal Oxygen Concentration |
| Warranty | 3 Years or 15,000hours - Review Manufacturer's Documentation For Full Warranty Details. |
Features
Thomas Compressor
Thomas compressor - the most trusted brand for users all over the world! It has strong power -- to provide enough powerful air output for our machine; Excellent temperature rise control technology ---- slows down parts aging loss and makes our machine has a long enough service life; Good noise reduction technology - you can use this machine freely without being affected even when sleeping .
Elf Blue Shell And Black Control Panel
The shell color of ocean blue with the agility of the elf, Elegant black panel with gold oxygen outlet connector ,make the whole machine look noble and elegant, making the user have an infinite good mood every day !
A Constant Supply Of Oxygen
Thomas compressor, unique cooling air duct design, the use of external heating and condensation technology, can ensure that the machine 24 hours non-stop operation. You can use it in peace mind .
Designed for Simplicity of Service
A simplified 2 piece cabinet is easy to assemble and disassemble, making maintenance easy. All patient controls are readily accessible. The air intake filter is accessible through the side of the unit in a filtered door. There is no maintenance needed by the patient, as far as cleaning the filter. There are only 4 screws used to open the 2 piece case. Save your time and money and ensure you can fix it easily.
Convenient Humidification
It’s easy-to-use humidifier bottle holder, with holding strap, is compatible with all standard bubble humidifiers; and it provides a trouble free connection for the humidifier and oxygen tubing at the side of the unit where it's most convenient.
FAQ
1.Are You The Manufacturer ? Can You Export It Directly ?
Yes ,we are oxygen plant with around 70,000 ㎡ production site.
We have been exported the goods to oversea markets since 2002. we can provide most documentation including ISO9001, ISO13485, FCS, CE, FDA, Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
2.What should I do if my machine is not functioning properly?
First of all, please refer to the manual to find the cause of the fault and solve the problem.
Secondly,If none of these solutions resolve your issue, please contact our after-sales service for help. We have a professional after-sales team to provide online support
3.Can portable oxygen concentrators be used with CPAP or BiPAP devices?
Yes! Continuous flow oxygen concentrators are absolutely safe to be used with most sleep apnea devices. But, if you're worried about a specific model of concentrator or CPAP/BiPAP device, contact the manufacturer or discuss your options with your doctor.
4.What kinds of payment methods do you accept?
30% TTdeposit in advance, 70%TT balance before shipping

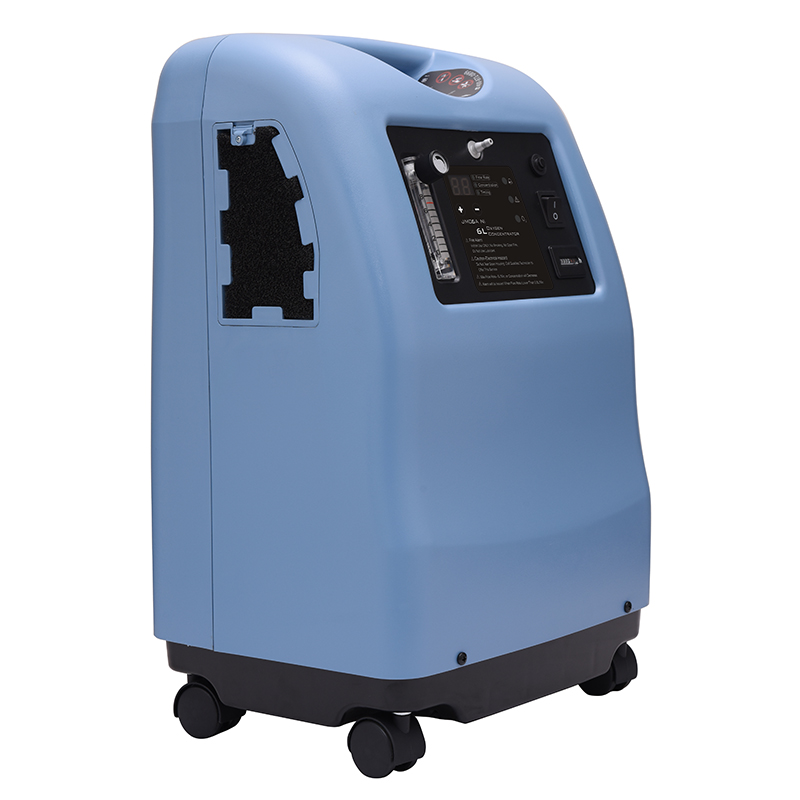

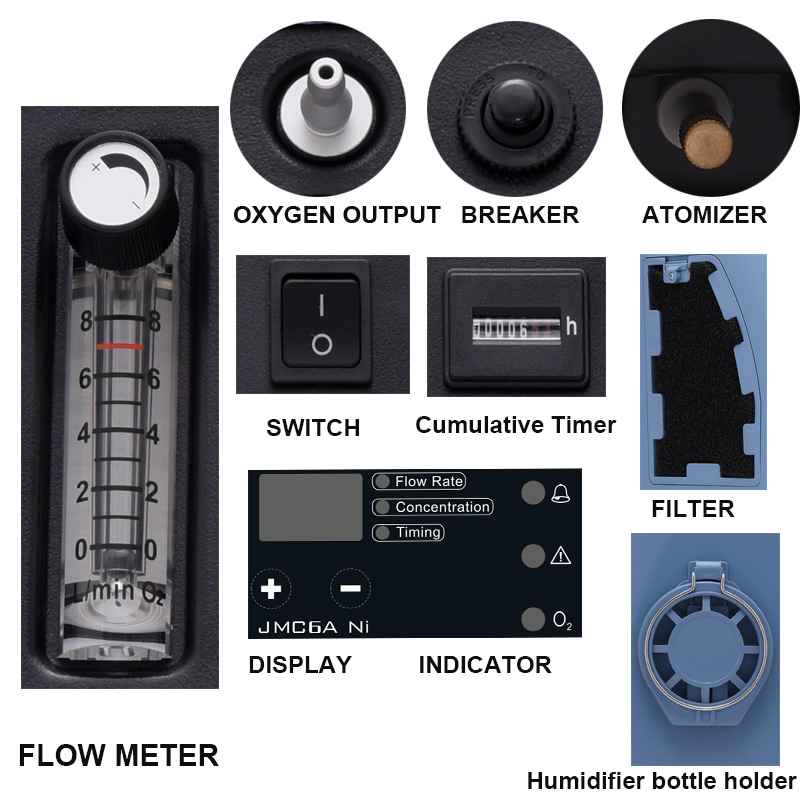

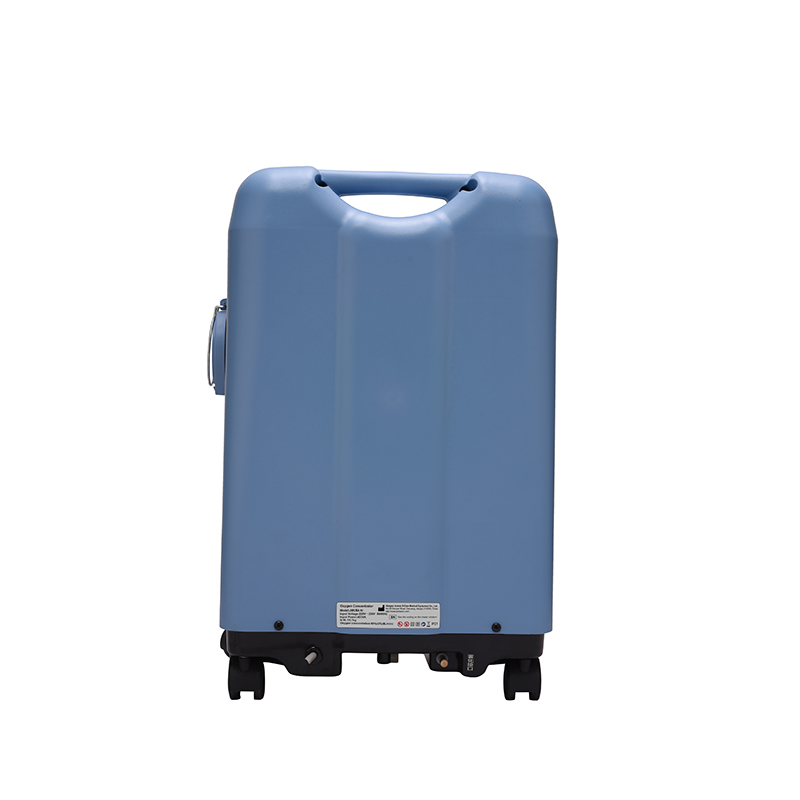

Product Display
