High performance lightweight functional series
Parameter
| Item | Specification（mm） |
| L*W*H | 41.3*26.4*35.4inch (105*67*90cm) |
| Folded Width | 11.8inch (30cm) |
| Seat Width | 16.1/18.1inch (41cm/46cm) |
| Seat Depth | 16.1inch (41cm) |
| Seat Height off the ground | 19.3inch (49cm) |
| The height of Lazy back | 16.1inch (41cm) |
| Diameter of front wheel | 8 inch ,PVC |
| Diameter of rear-wheel | 24inch ,Resin |
| Spoke Wheel | Plastic |
| Frame material Pipe D.*Thickness | 22.2*1.2mm aluminum alloy tube |
| N.W: | 14.8 Kg |
| Supporting Capacity | 100 Kg |
| Outside carton | 80*35*75cm |
Features
Safety and Durable
The frame is high strength aluminum alloy welded,It loads more than 100kg .You can use it without any worry .The surface is processing with Oxidation for fadeless and rust resistance .You don't have to worry about the product being worn out. The cushion is made of Nylon fabric and sponge. And all of those material are flame retardant. Even for smokers, it is very safe and there is no need to worry about safety accidents caused by cigarette butts.
Flexible and Convenient
Backrest frame: the Angle is completely designed according to the physiological bending of the waist of the human body to provide the best support for the human body.
Detachable handrails：When you need to get on and off the car from the side, you can remove the handrail, so that you can achieve barrier-free movement.
Detachable and rotatable leg ,PP footplate with heel band. The height of swing leg is adjustable. This design can save your space during transport much.
Long life Key parts.
The front casters are made of solid PVC tire with high strength plastic hub ,combined to Aluminum alloy fork to support the frame.
The integrated rear wheel is made of ABS and glass fiber, the outer wheel is wrapped with PU, the wheel is strong and crash-resistant, in the process of driving, PU outer wheel can effectively reduce noise and vibration.
Front casters: Solid PVC tire with high strength plastic hub, front wheel with high strength aluminum alloy fork
Rear wheels：Rubber ,excellent shock absorption, with handloops to drive directly

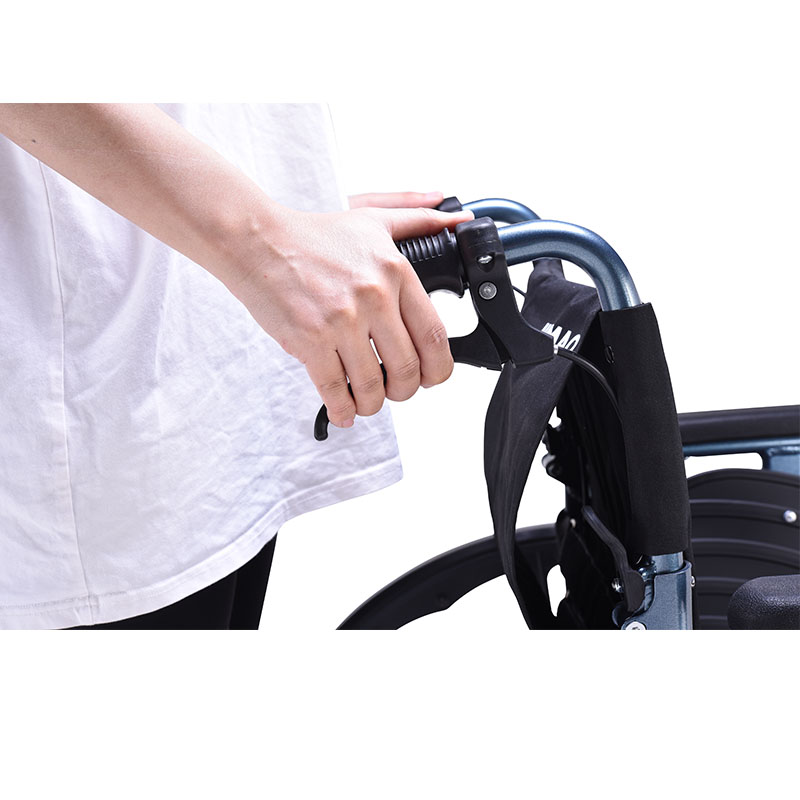

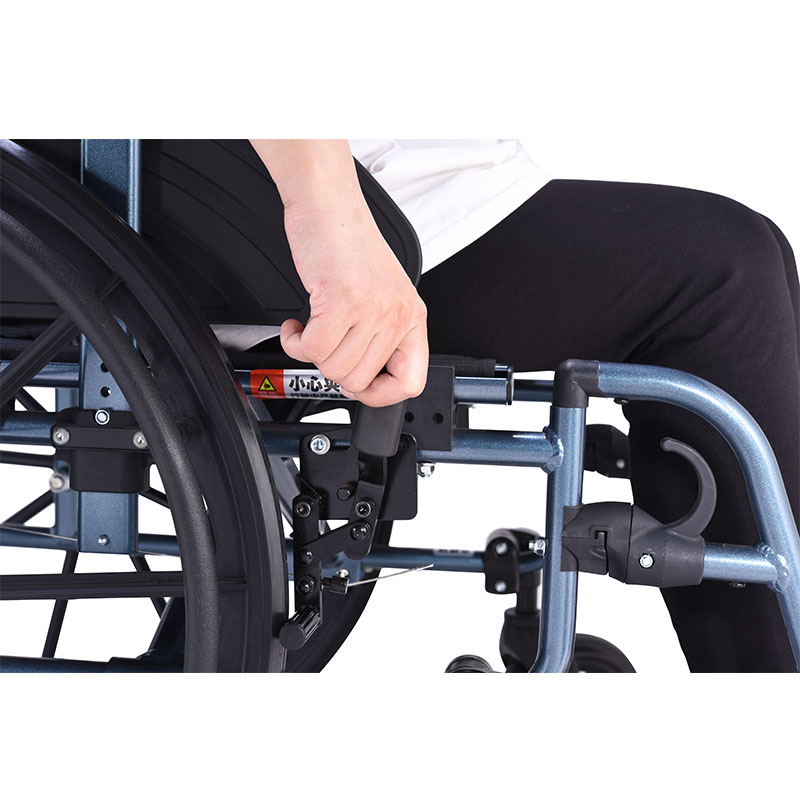

Double brakes：hand wheel device and Knuckle type brake below the seat surface, fast, convenient and safe
Foldable model is easy to carry around, and can save space
FAQ
1.Are You The Manufacturer ? Can You Export It Directly ?
Yes ,we are manufacturer with around 70,000 ㎡ production site.
We have been exported the goods to oversea markets since 2002. we can provide most documentation including ISO9001, ISO13485, FCS, CE, FDA, Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
2. Can i Order Myself Model ?
Yes , surely . we provide ODM .OEM service.
We have hundreds of different models, here is just a simple display of a few models, if you have an ideal style, you can directly contact our email. We will provide you with more detailed product details
3.How To Solve The After-Service Problems In The Oversea Market ?
Usually, when our customers place an order, we will ask them to reorder a certain proportion of quick-wear parts. Dealers provide after sales service for the local market.
4.What Kinds Of Payment Methods Do You Accept?
30% TT deposit in advance, 70%TT balance before shipping
Product Display
