JUMAO Q22 Light Bed for Long Term Care
Parameter
| Height - Low Position | 195mm |
| Height - High Position | 625mm |
| Weight Capacity | 450LBS |
| Bed Dimensions | Min2100*900*195mm |
| Width & Length Expansion | max length 2430mm no width expansion |
| Motors | 4 DC Motors, The overall lifting motor loading 8000N, the back motor and leg motor loading 6000N，input:24-29VDC max5.5A |
| Deck Style | Steel pipe welding |
| Functions | Bed lifting, back plate lifting, leg plate lifting, front and rear tilting |
| Motor brand | 4 Brands as option |
| Trendelenburg Positioning | Front and rear tilt angle 15.5° |
| Comfort Chair | Head deck lifting angle 60° |
| Leg/Foot Lift | Maximum hip-knee angle 40° |
| Power Frequency | 120VAC-5.0Amps-60Hz |
| Battery Backup Option | 24V1.3A Lead acid battery |
| Battery backup warranty for 12 months | |
| Warranty | 10 Years on Frame, 15 Years on Welds, 2 Years on Electrical |
| Caster Base | 3-inch casters, 2 head casters with brakes, directional limit, and foot pedal brakes |

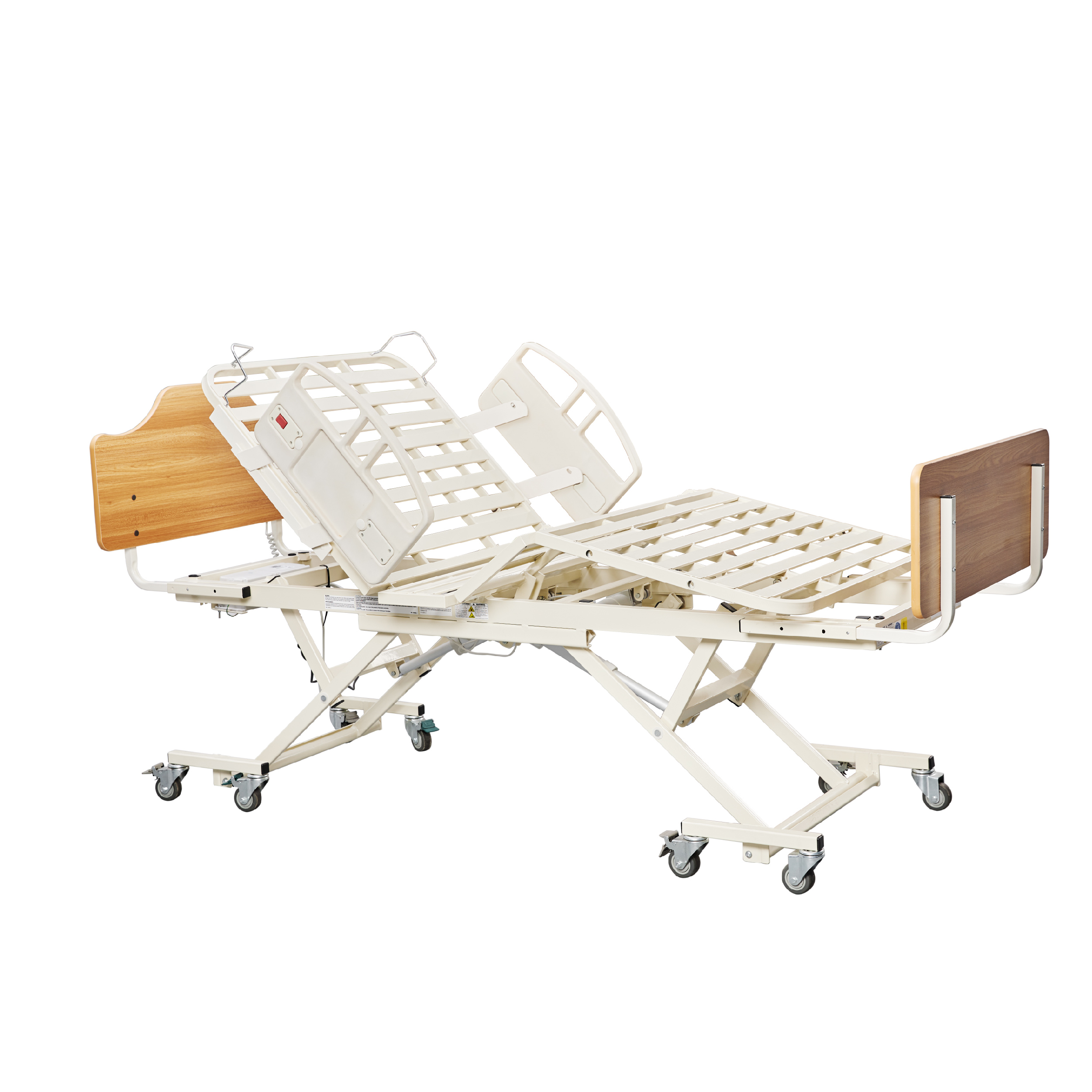

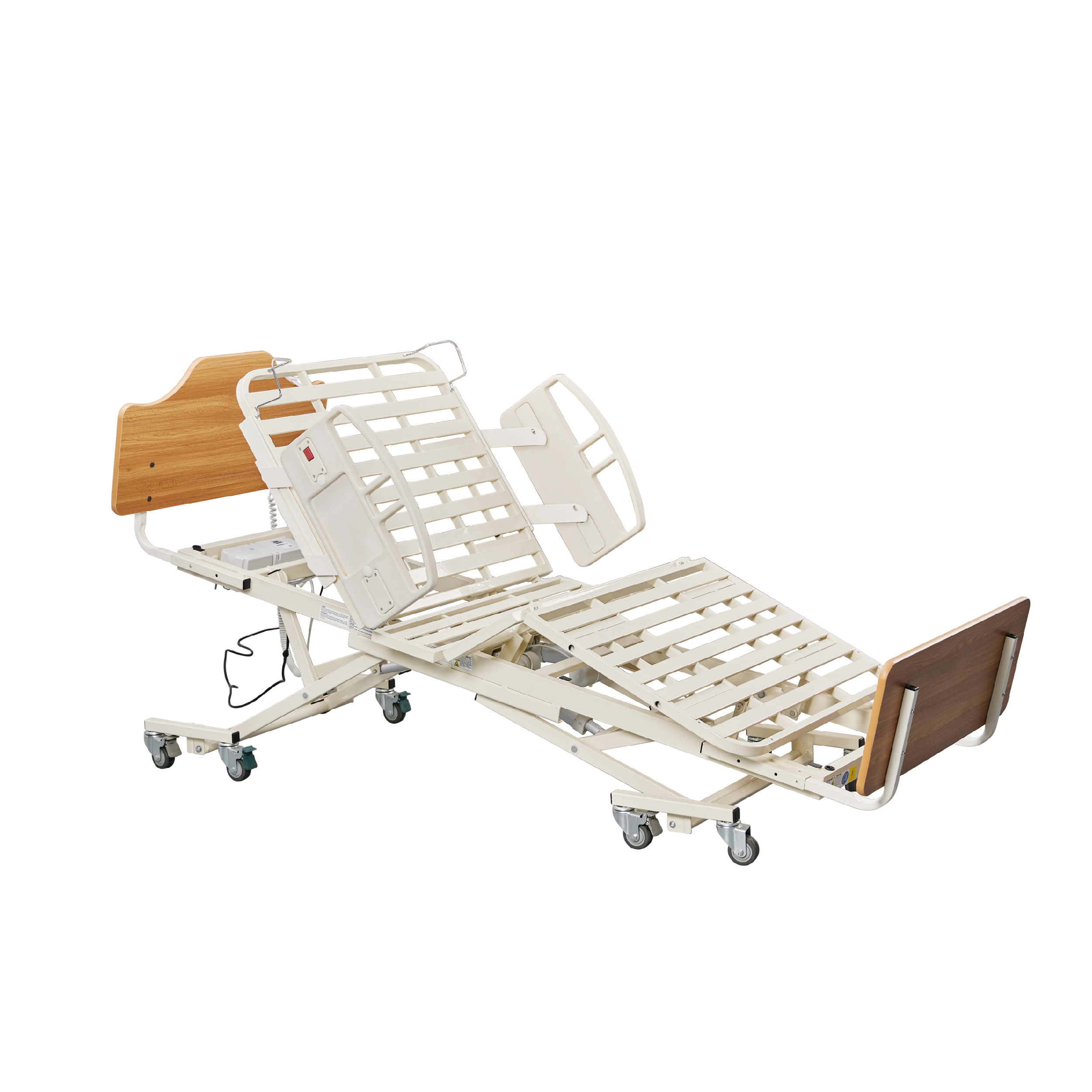

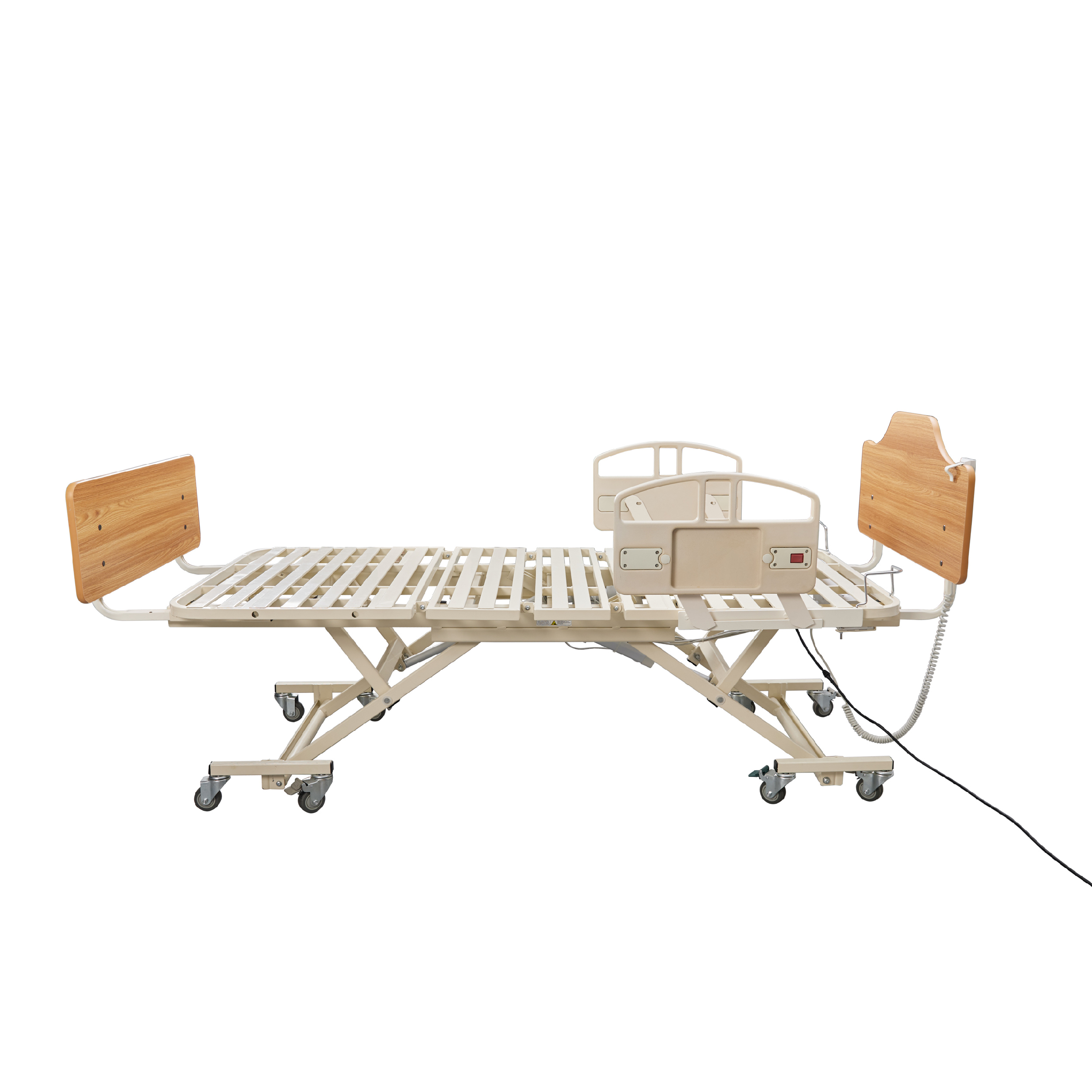

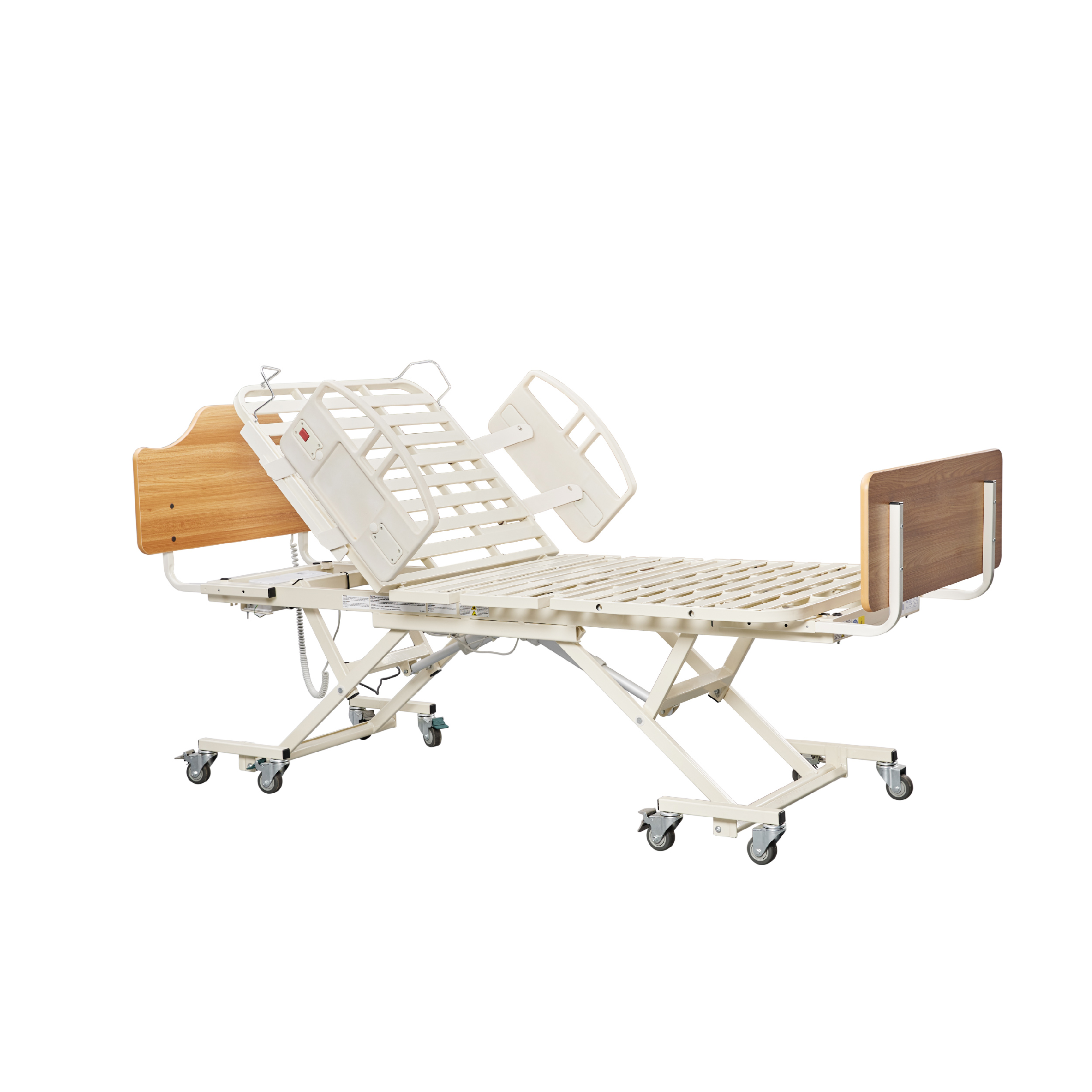

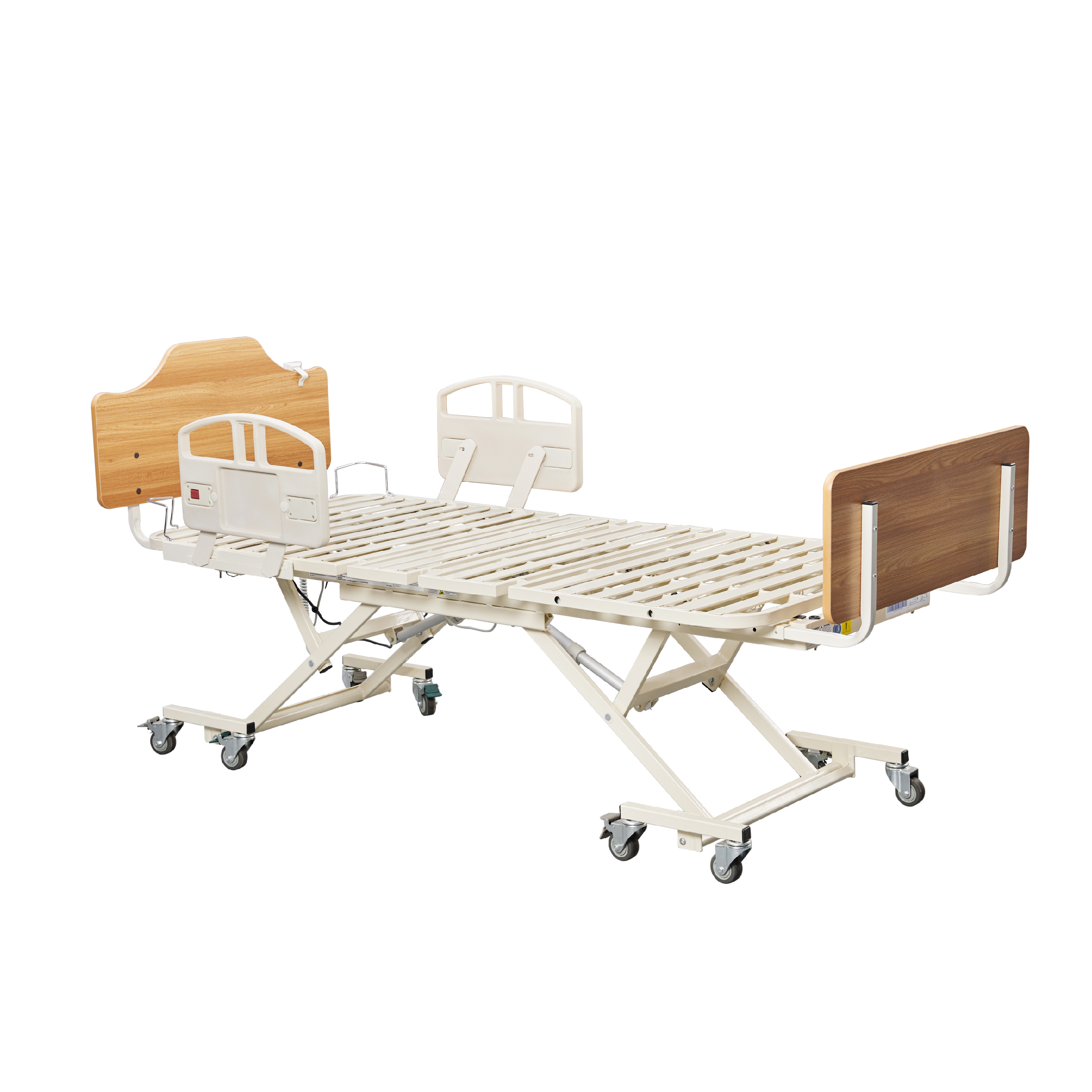

Product Display
Company Profile
Jiangsu Jumao X-Care Medical Equipment Co., Ltd. is situated in the Danyang Phoenix Industrial Zone, Jiangsu Province. Established in 2002, the company boasts a fixed asset investment of 170 million yuan, spanning an area of 90,000 square meters. We proudly employ over 450 dedicated staff members, including more than 80 professional and technical personnel.
Production Line
We have invested significantly in new product research and development, securing many patents. Our state-of-the-art facilities include large plastic injection machines, automatic bending machines, welding robots, automatic wire wheel shaping machines, and other specialized production and testing equipment. Our integrated manufacturing capabilities encompass precision machining and metal surface treatment.
Our production infrastructure features two advanced automatic spraying production lines and eight assembly lines, with an impressive annual production capacity of 600,000 pieces.
Product Series
Specializing in the production of wheelchairs, rollators, oxygen concentrators, patient beds, and other rehabilitation and health care products, our company is equipped with advanced production and testing facilities.
