JUMAO Q23 Heavy Duty Bed for Long Term Care

Short Description:

  • Travels from a low of 7” to a convenient high height of 30”
  • Center step safety lock
  • 600 lb. safe working load
  • Self-leveling motors
  • 4 Year warranty on electronics and 15 year warranty on bed deck and frame
  • Swivel locking casters and flip down caster guides
  • Baseboard bumper
  • 10 Button handset
  • Meets 60601-2-52

Product Detail

Product Tags

Parameter

Height - Low Position 190mm
Height - High Position 750mm
Weight Capacity 600LBS
Bed Dimensions Min2180*900*190mm
Width & Length Expansion Max length 2360mm max width 1160mm
mattress max length 2200mm max width 1000mm
Motors 4 DC Motors,The overall lifting motor loading 6000N, the back motor and leg motor loading 5000N,input:24VDC
Deck Style Steel pipe welding
Functions Bed lifting, back plate lifting, leg plate lifting, front and rear tilting
Motor brand 4 Brands as option
Trendelenburg Positioning Front and rear tilt angle 16.5°
Comfort Chair Head deck lifting angle 65°
Leg/Foot Lift Maximum hip-knee angle 34°
Power Frequency                  /
Battery Backup Option 24V1.3A Lead acid battery
Battery backup warranty for 12 months
Warranty 10 Years on Frame, 15 Years on Welds, 2 Years on Electrical
Caster Base 3-inch casters, 2 head casters with brakes, directional limit, and foot pedal brakes

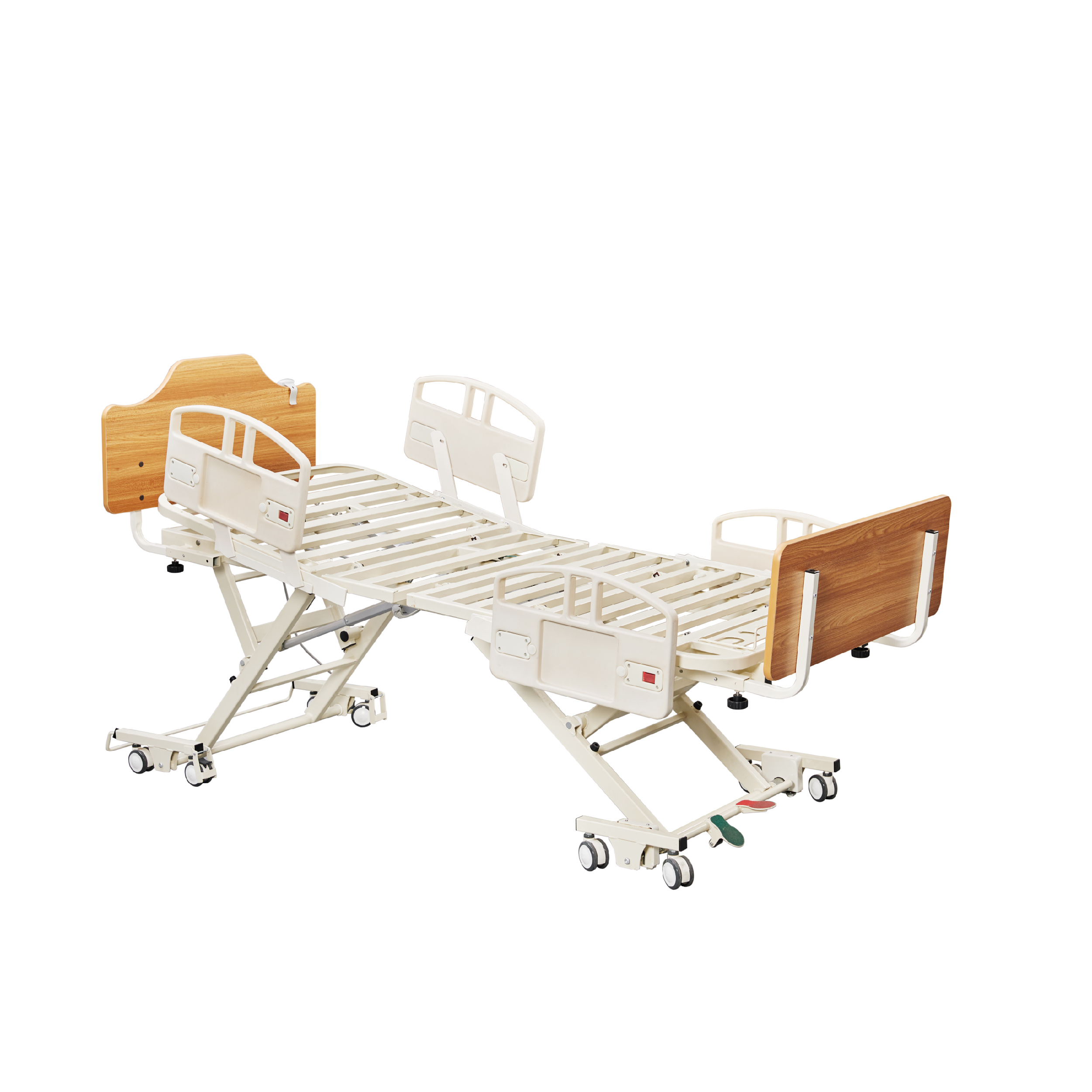

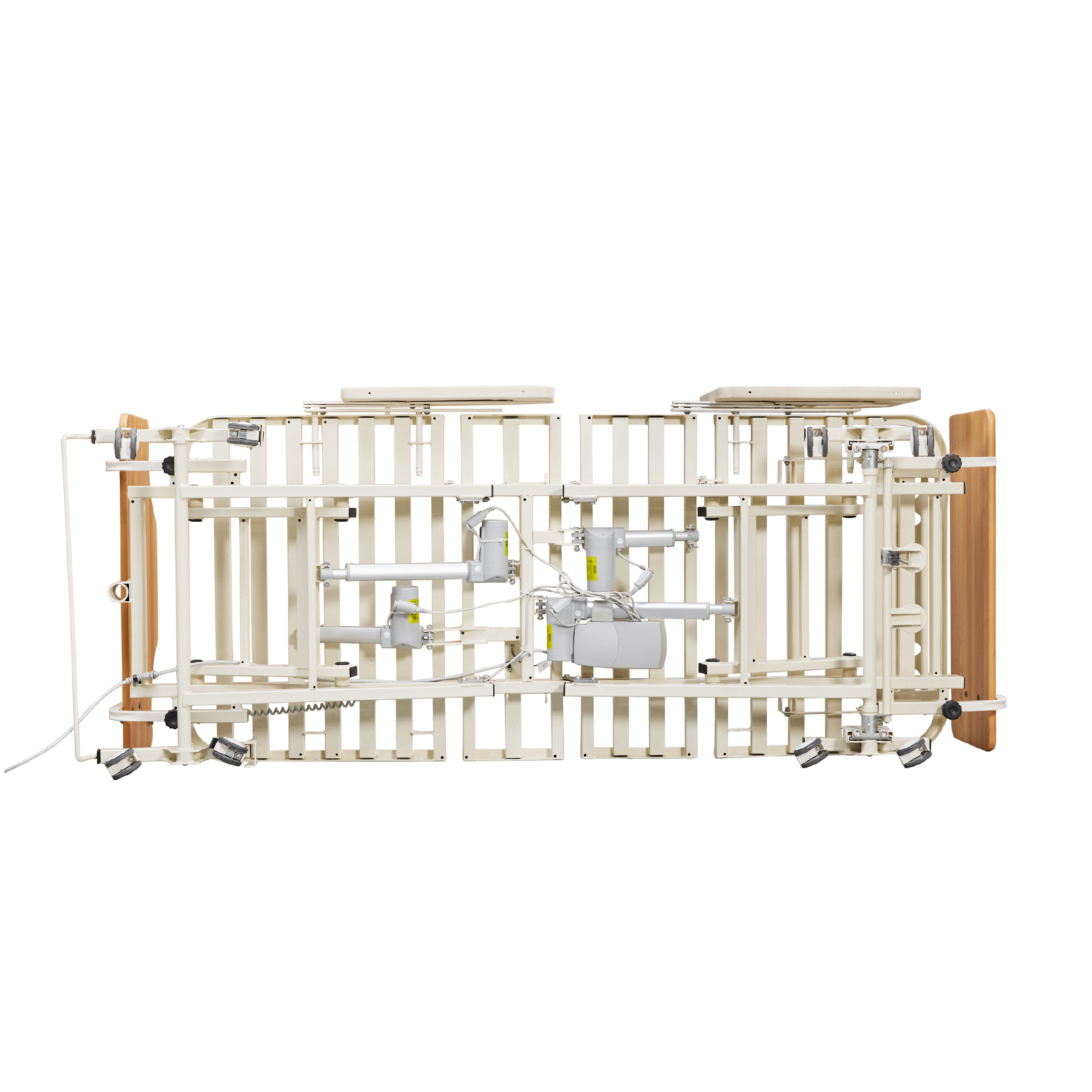

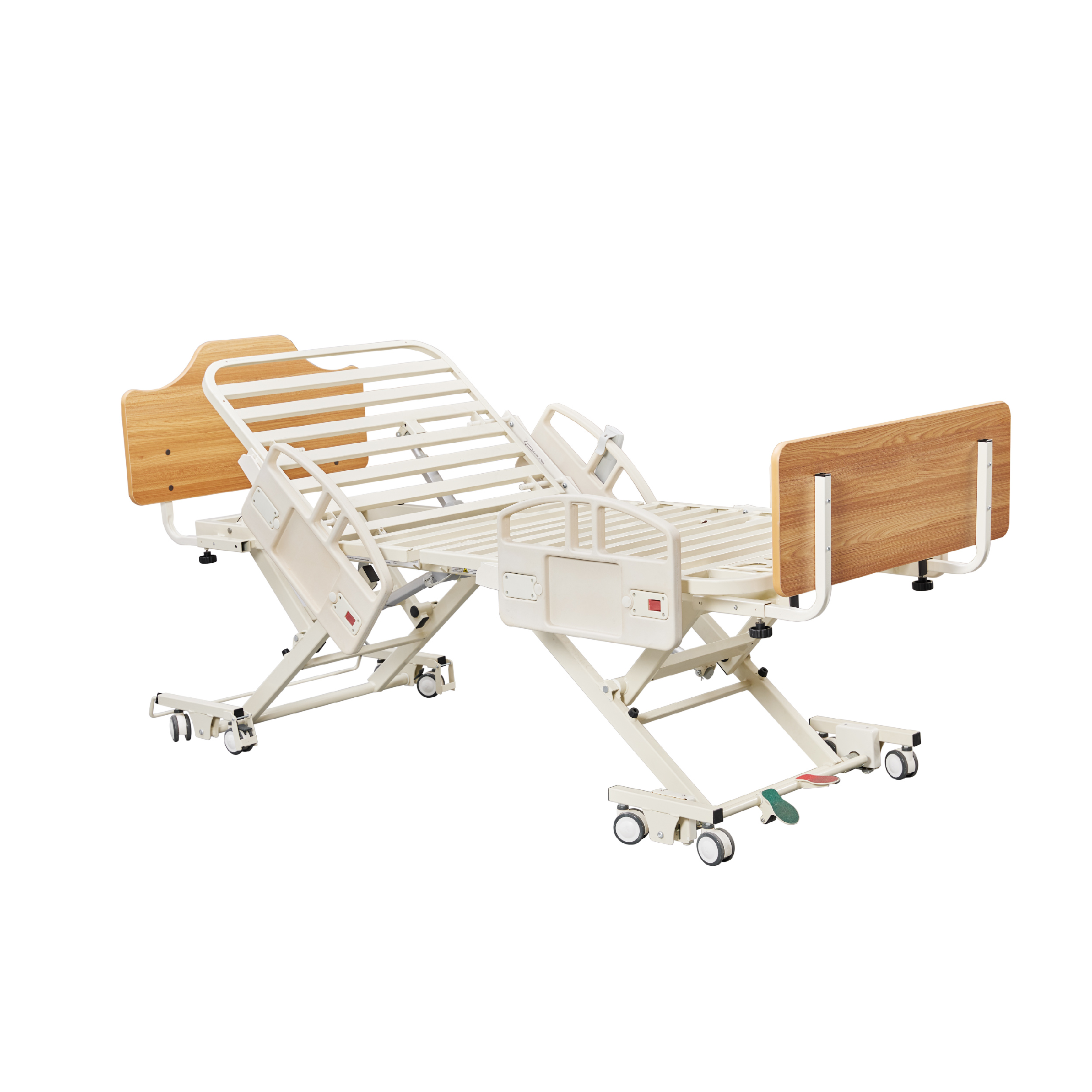

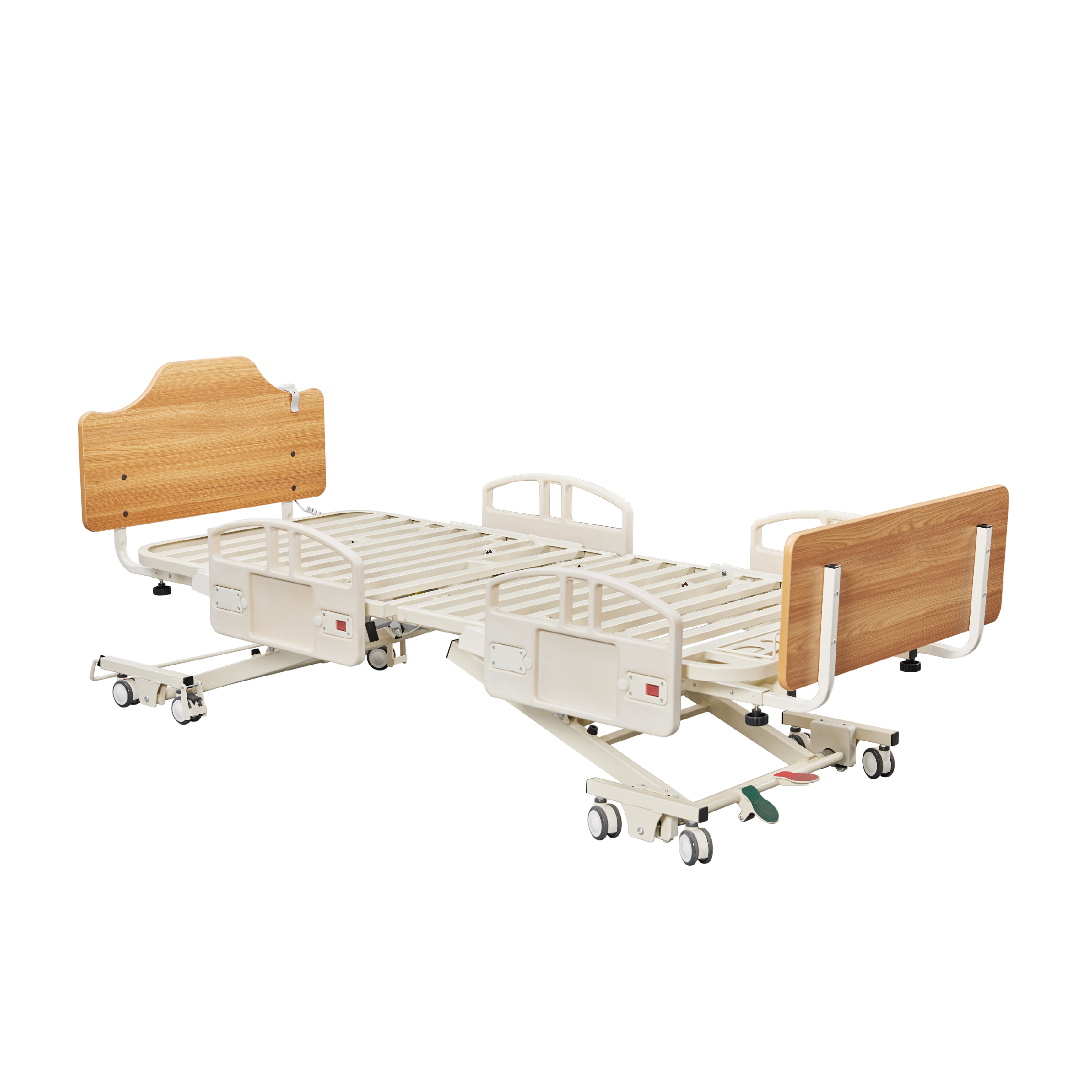

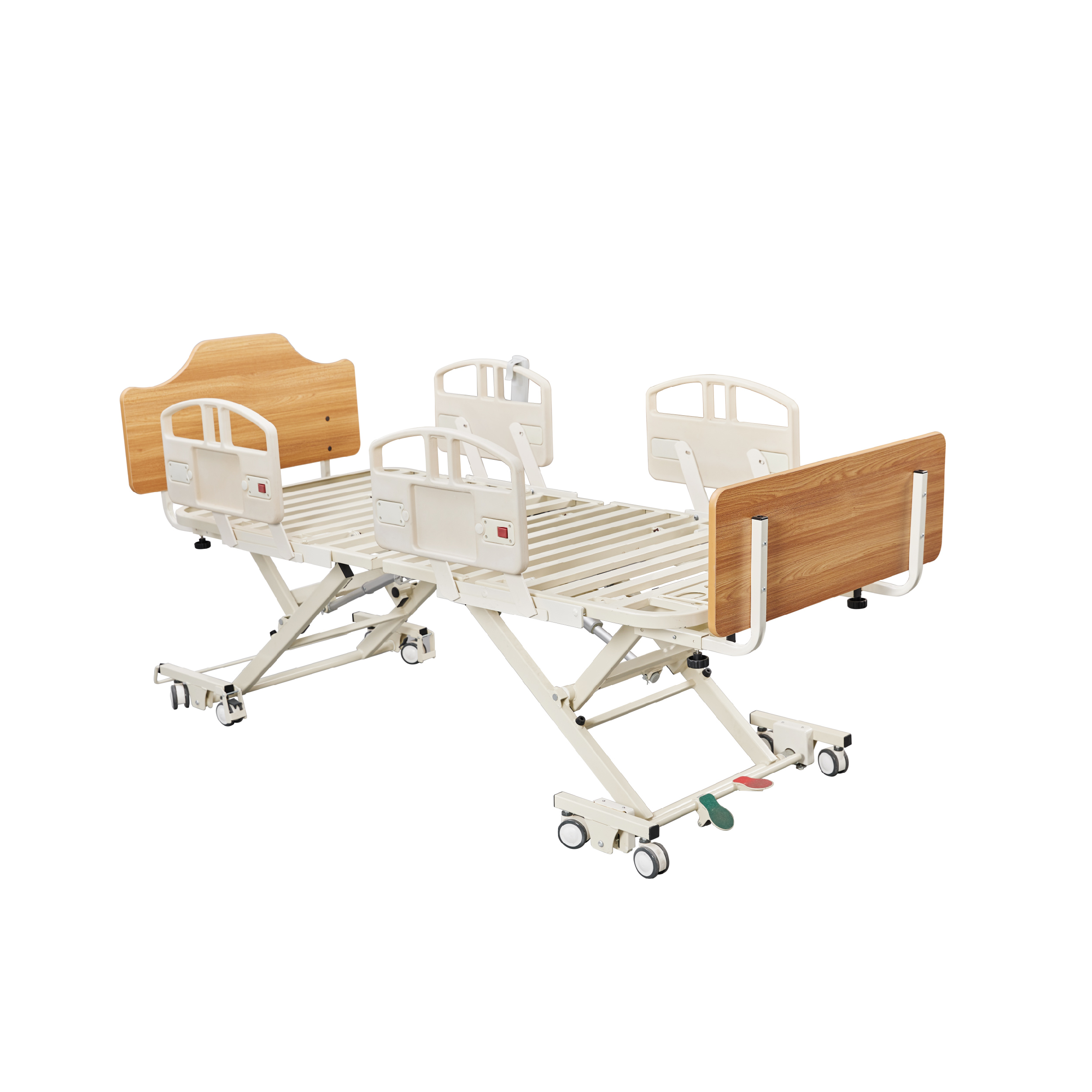

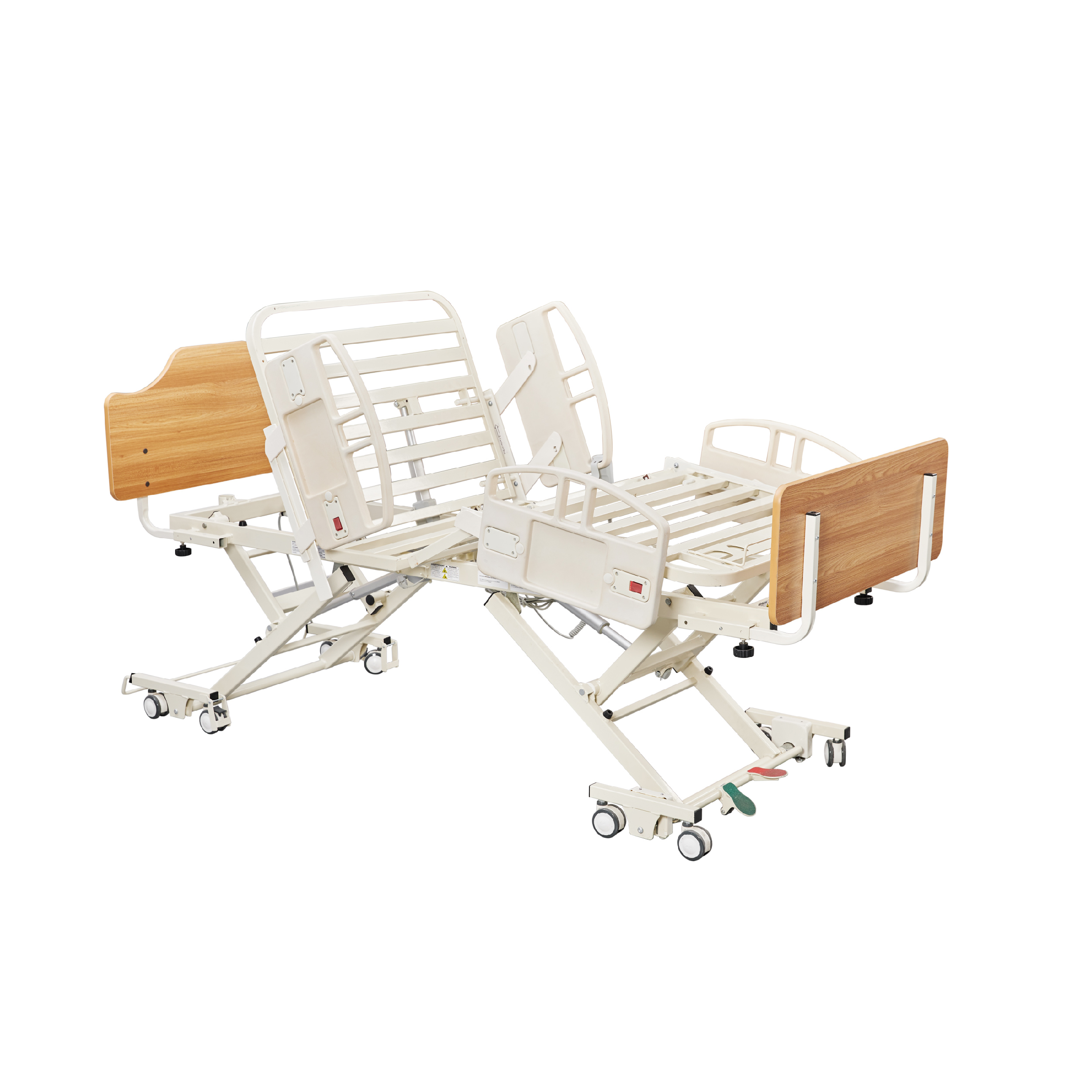

Product Display
