Parameter
Brilliantly designed,the slim profile, sleek design, high-end Grey color , with simple user interface and an exceptionally quiet motor,advanced cooling system, low power usage, and lightweight, durable construction make it easy, convenient, and very popular at home ,while the durability, reliability, and ease of maintenance are perfect for care facilities and professional settings as well.
| Model | JMC5A Ni (FDA) |
| Compressor | Oil-Free |
| Average Power Consumption | 450Watts |
| Input Voltage/Frequency | AC120 V ± 10% 60 Hz |
| Ac Power Cord Length(Approx) | 8 Feet ( 2.5m ) |
| Sound level | ≤41 dB(A) |
| Outlet Pressure | 5.5 Psi (38kPa) |
| Liter Flow | 0.5 To 5 Liters Per Minute |
| Oxygen Concentration | 93%±3% At 5L/Min. |
| OPI (Oxygen Percentage Indicator) Alarm L | Low Oxygen 82% (Yellow), Very Low Oxygen 73%（Red） |
| Operating Altitude | 0 To 6,000 (0 To 1,828 m) |
| Operating Humidity | Up To 95% Relative Humidity |
| Operating Temperature | 41 Degree Fahrenheit To 104 Degree Fahrenheit (5 Degree Celsius To 40 Degree Celsius) |
| Required Maintenance（Filters） | Machine Inlet Window Filter Clean Every 2 Weeks Compressor Intake Filter Change Every 6 Months |
| Dimensions(Machine) | 13*10.2*21.2inch (33*26*54cm) |
| Dimensions(Carton) | 16.5*13.8*25.6 inch (42*35*65cm) |
| Weight (Approx) | N.W: 35lbs （16kg） G.W: 40lbs (18.5kg) |
| Alarms | System Malfunction, No Power, Impeded Oxygen Flow, Overload ,Overheat, Abnormal Oxygen Concentration |
| Warranty | 3 Years 0r 10,000hours - Review Manufacturer's Documentation For Full Warranty Details. |
Features
A 365days Working Machine ,No-Stopping Working
If you are severely oxygen dependent. This 5 LPM oxygen concentrator is your best choice. Super compressor performance to provide a steady stream of power, super large amount of high-efficiency lithium molecular sieve filling enough to support the machine's long-term oxygen production requirements, the latest thermal condensation technology to effectively protect the service life of the machine, multiple intelligent alarm system monitoring machine running status anytime and anywhere, let you feel at peace when using.
Includes Pressure Sensor Monitor For Stable oxygen
The oxygen concentrator has a pressure sensor configuration. Monitor oxygen tank pressure anytime, anywhere. When the pressure value of the oxygen storage tank reaches the set value, the molecular sieve adsorption tower group of the machine will be switched immediately. Compared with the oxygen produced by time control, the oxygen purity is higher and the flow rate is more stable by pressure sensor monitoring. Stable oxygen state, let you like natural breathing as comfortable, no strange feeling.
Includes Sensor O₂Monitor For Added Security
JUMAO Oxygen Concentrator comes complete with Sensor O₂ Monitoring built in. Sensor O₂ continuously monitors the purity of oxygen generated by the concentrator. If purity falls below acceptable preset levels, indicator lights on the control panel will illuminate to alert the user.
Low Maintenance Cost
The most concise appearance design on the market, allowing access to the internal structure of the machine in the shortest time.Two screws on both front and rear ,two pieces parts for the whole housing. If you want to check the inside of the machine, it only takes 8 seconds to loosen 4 screws and remove the housing.
FAQ
1.Are You The Manufacturer ? Can You Export It Directly ?
Yes ,we are manufacturer with around 70,000 ㎡ production site.
We have been exported the goods to oversea markets since 2002. we can provide most documentation including ISO9001, ISO13485, FCS, CE, FDA, Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
2.How does an oxygen concentrator work?
It takes in ambient air from the surrounding area
It compresses the air inside the machine
It separates nitrogen and oxygen via sieve beds
It reserves oxygen into the tank and pump nitrogen into the air
Oxygen is delivered right to your nose & mouth through a nasal cannula or mask.
3.What should I do if the yellow Low Oxygen light is on and the intermittent audible signal is sounding?
This may be due to a few reasons:
1) Oxygen tubes are blocked- check your oxygen delivery tube and ensure there is no bending .
2) Flow meter is not properly set - Make sure that the flow meter is properly set to the standard flow.
3) Air filter is blocked - Check the air filter, if it is dirty, wash it following the cleaning instructions on the user manual.Exhaust is blocked - Check the exhaust area and make sure there is nothing restricting the unit exhaust.
If none of these solutions resolve your issue, please contact us for assistance.

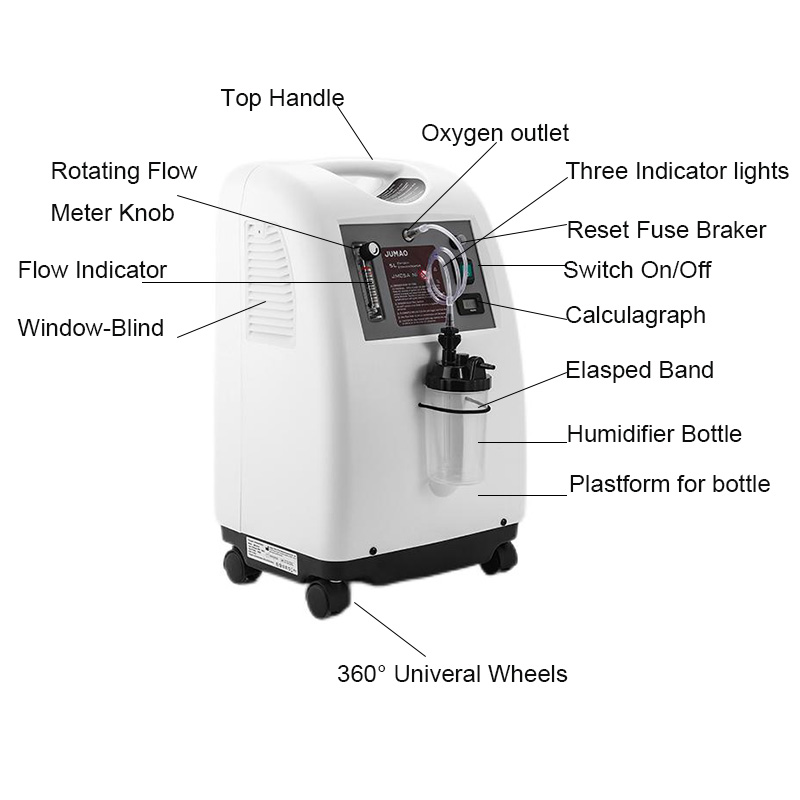

Product Display
